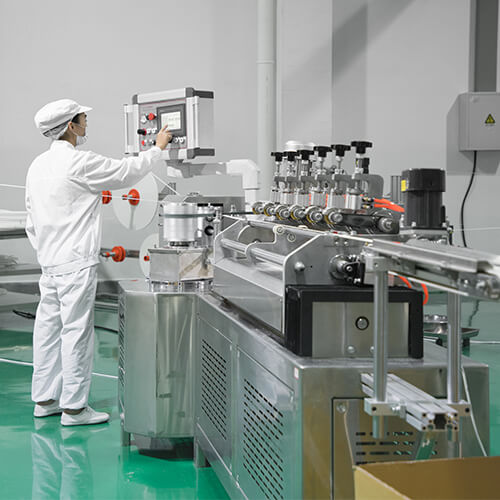

RB7001 Paper Straws Making Machine

RB7001 is the major machine to produce paper straws. We adopted and introduced the most advantaged version of paper straws making machines into our production line. And we are very love to introduce this machine to customers as well based on our using experience and techniques mastered.

  • Adopt human-machine operation interface, more convenient for operation.
  • T Bar Paper reeling stand , Slitting rolls are easily placed into reel stand.
  • Choose Single or double glue coating unit.
  • Spiral winding part , specialized operation system , Belt tension device (hand-wheel driven).
  • Multi-knife System in-line cutting unit controlled by encoder, cutting final paper tube directly, Servo motor control cutting system.
  • Option device : Full stainless steel body

Technical Data

Number of roller 3 layer Main motor 3 KW
Tube diameter 5-12 mm Reducer type RV110-1:15
Wall-thickness 0.5-1 mm Conveyor reducer RV 30/40-1:7.5
Core mould fixed Flank chuck PLC controller Delta DVP28SV
Winding head
2 Touch screen MCGS TPC7062
Cutting way 6 multi-blade Inverter YASKAWA3.7 KW
Gluing way
Single side Mainframe size 3000*1400*1450
Operator
1-2 person Weight 1200 KGS
